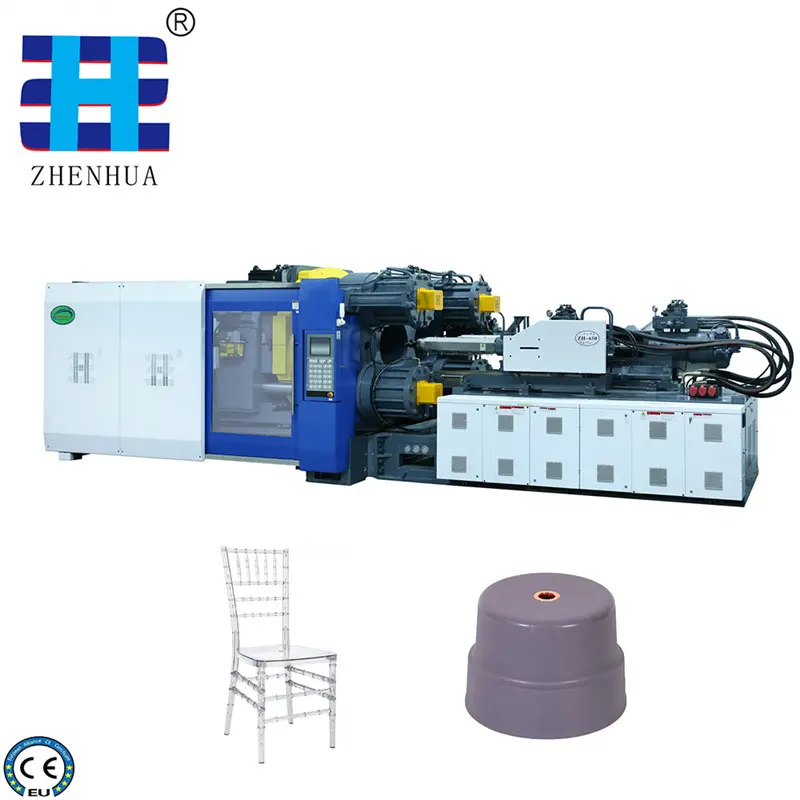

650T Two Plates/Double platen IMM For Chair Producing
Medium And Large-Scale Two Plates/Double Platen Injection Molding Machine
Short Description:
Large two-platen injection molding machine’s advantages :

(1)Large opening stroke: The die opening and locking stroke is not limited by the structure, better for deep cavity product, such as automobile manufacturing, aerospace, furniture manufacturing and other industries.

(2)High precision clamping force control: clamping full hydraulic control, clamping force linear control, four pull rod force balance, accurate control.

(3)Fast mold opening and accurate positioning: The use of low pressure fast opening and closing mold cylinder, not only can achieve fast and accurate positioning, but also can better protect the mold.

(4)High reliability and long life: inorganic hinge wear, and the clamping force repeatability is good, high stability, pull rod force uniform.

(5)Saving space: clamping unit is shorter than traditional toggle type machine.
我是一个段落。点击添加文本和编辑设置，操作很简单。

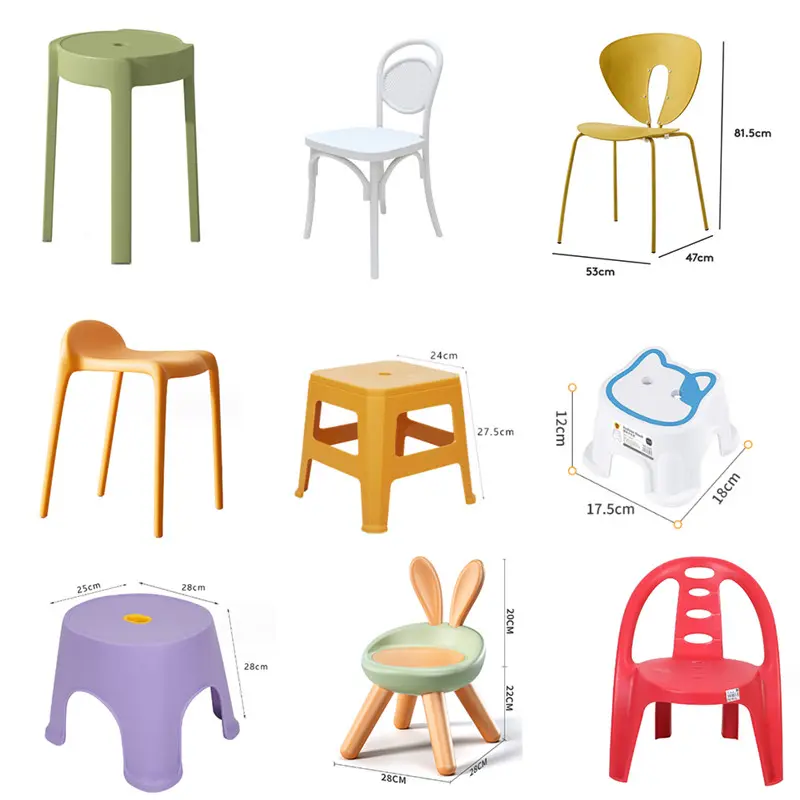

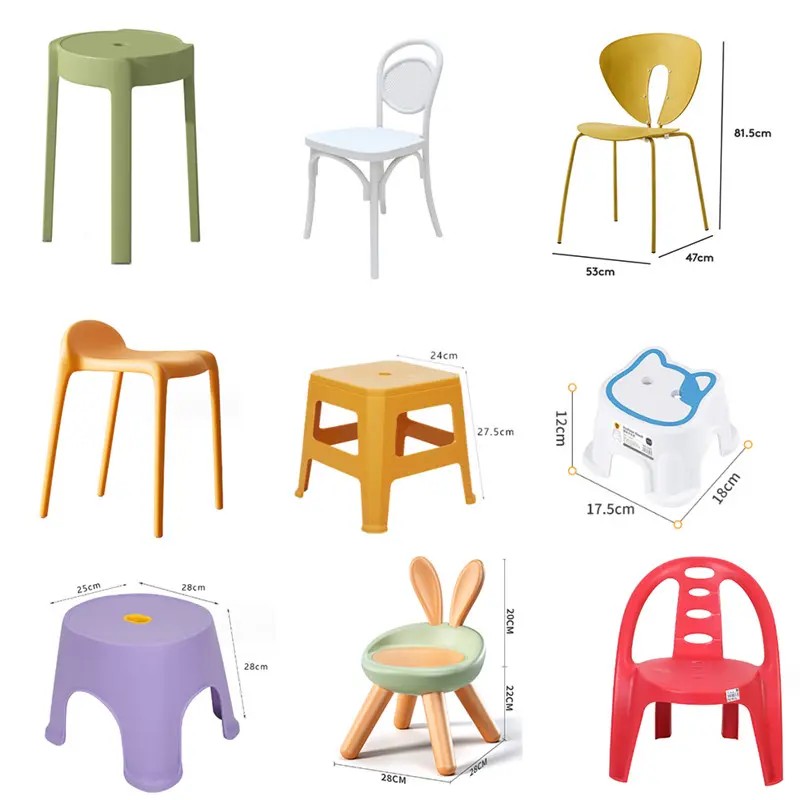

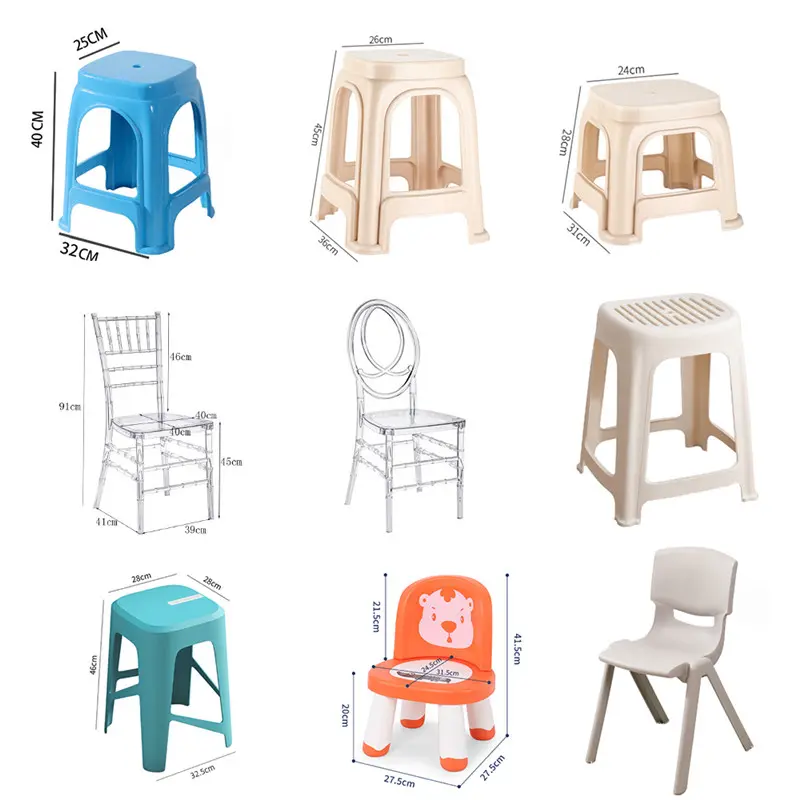

Chair Product Picture

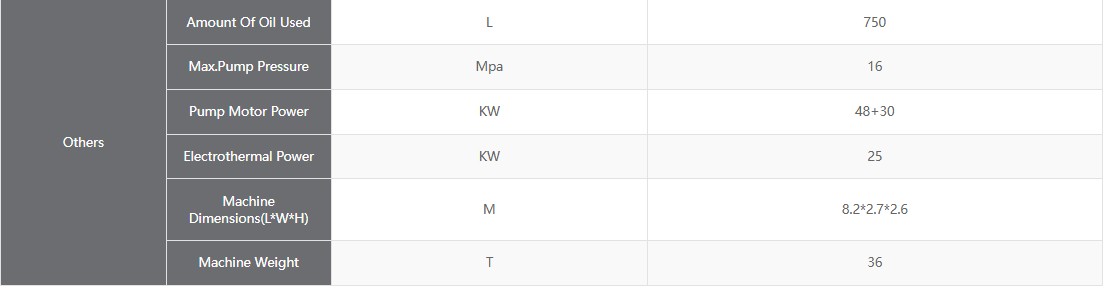

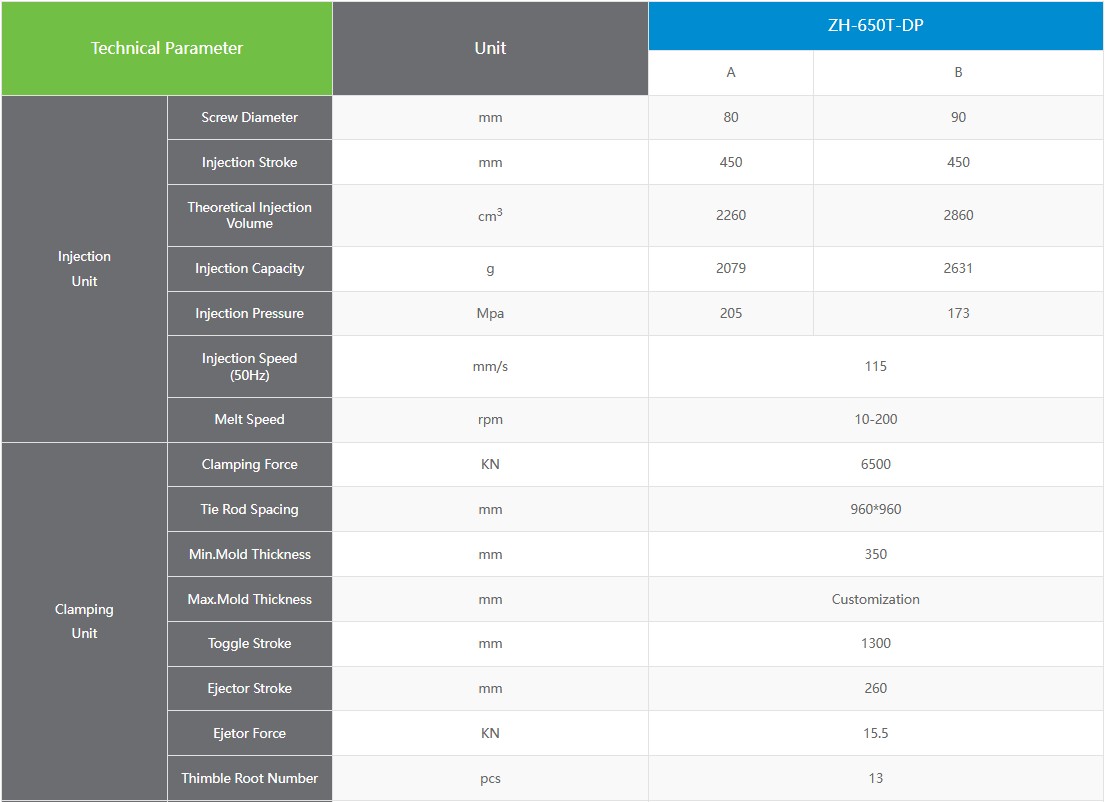

Technical Parameter



The Application of Injection Molding Machine in Chair

Some common parts that injection molding machines can produce for chairs include:

Seat shell: The injection molding machine can manufacture the seat shell of the chair. It can be injection molded into seat shells of different shapes, colors and sizes according to design needs. Legs: Injection molding machines can produce chair legs, including four upright legs and stabilizers. The legs can be injection molded into different shapes, heights and strengths as required.

Armrests: Some chairs are designed with armrests, and injection molding machines can manufacture these armrests to match the design requirements.

Screws and nuts: Chairs require screws and nuts to connect different parts, and injection molding machines can produce these screws and nuts.

Cushions and back cushions: Chairs usually require cushions and back cushions to increase comfort. Injection molding machines can produce these cushions in different thicknesses, elasticities and colors as needed.

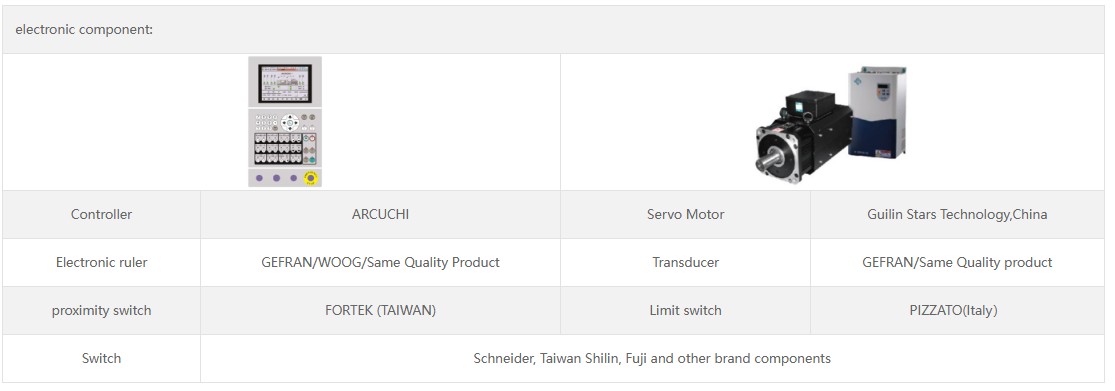

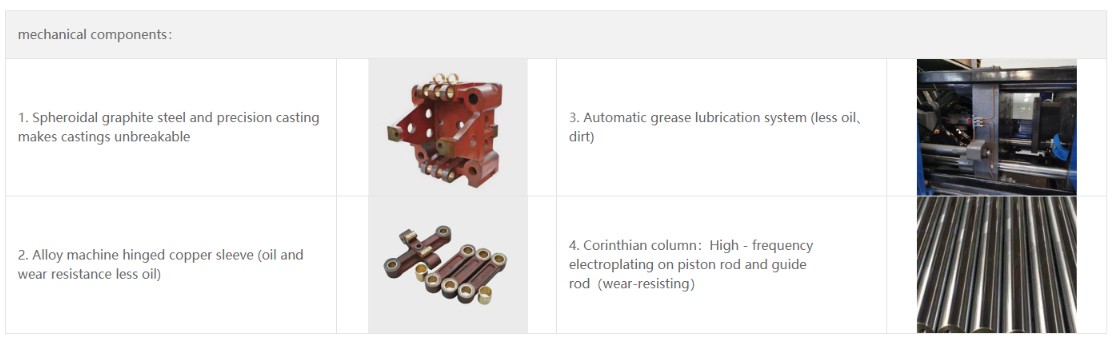

Injection molding machine components
